SPECIALISTS IN
TUBE LASER CUTTING
At Fargo Steel, we pride ourselves on being industry leaders in metal processing. Our unwavering commitment to precision ensures 100% accurate and consistent cutting and bending solutions for our clients. With a focus on efficiency, we deliver short processing times without compromising on quality.
Our streamlined approach enables us to meet the highest quality standards within budget. Every process is carefully designed to align with client specifications and timelines, no matter the scale of the project.
We are proud to utilize advanced AMADA machining equipment, a global leader in metal processing technology.

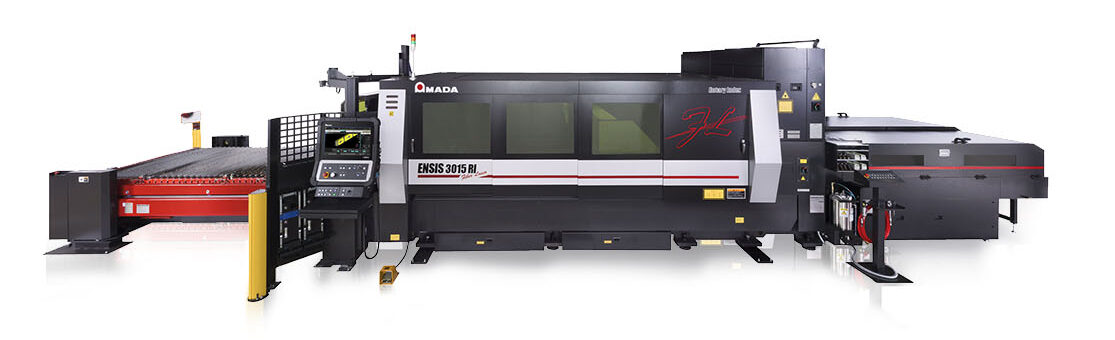

Our fibre laser tube cutting machine, the AMADA ENSIS-RI, is designed to process round, square, and rectangular tubes, as well as channel and angle profiles. Combining AMADA’s revolutionary ENSIS technology for laser beam control with the proven Rotary Index system for tube cutting, this machine provides unmatched versatility.
With the AMADA ENSIS-RI, we can meet a wide range of production requirements using a single machine, maximizing productivity while reducing costs. This ensures our clients receive superior results with every project.
Rotary Index Specifications
| Chuckable diameter | Round tube Square tube |
mm | Ø 19 to 220 □ 19 to 150 |
| Channels Angles |
mm | 19 to 150 19 to 130 |
|
| Diameter through chuck | mm | Ø 19 to 220 | |
| Maximum pipe mass | kg | 200 | |
| Maximum pipe length | mm | 6000 | |
| Pipe thickness | mm | 1-12 | |
| Angle/channel thickness | mm | 1-9 | |
Round
Square
Angle
Channel
Up To:
6.625″ OD Round
.25 Wall Thickness
5″ x 5″ Square
16.5′ Finished Part Length
Hot & Cold Rolled
Diamond Plate
Perforated
Specialty Finishes
Up To:
6′ x 12′ Raw Sheets
.75″ Thickness
Air Bending
Bottom Bending
Hemming
Roll Bending
Up To:
Bend Length 120″
173 US Ton Press Force
Fast Turnaround Times
The speed in which we process your projects is unmatched by anyone in the industry. 3 - 5 Day turnaround from material arrival.
Cutting Edge Technology
We are proud to feature the following: AMADA EZ Cut System AMADA ENSIS 3015 AJ Trotec Laser Marker
Material Sourcing
Through well established partnerships, Fargo is capable of sourcing materials and shipping at the best possible prices for our customers nationwide
Customer Experience
From the time of contact, to receiving a quote all the way to completion, we take a hands on approach to each individual customer and thier parts.
